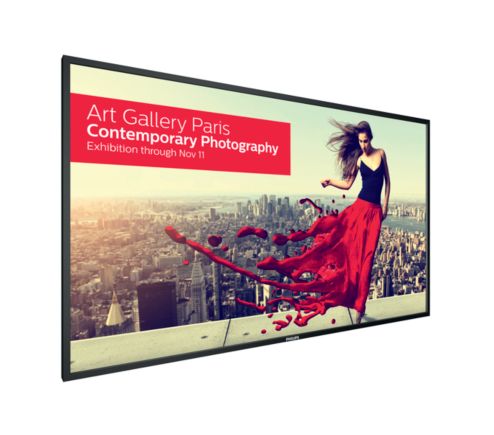

Philips 75″, Edge LED Backlight, Ultra HD 75BDL3000U/00

Philips 75″, Edge LED Backlight, Ultra HD 75BDL3000U/00


74.5  inch display for 24/7 operation
OPS media player compatible
UHD resolution (3840 x 2160 )
410  cd/m²
Dynamic contrast ratio 500,000:1





Captivate your audience


Captivate your audience

With an ultra large screen experience

  • Play content from 4 separate inputs with QuadViewer

    Play content from 4 separate inputs with QuadViewer

    Be more flexible with your screen real estate. With the ability to play content from up to four separate inputs, all on one screen. QuadViewer is ideal for control rooms, corporate environments, and meeting rooms.

  • CMND: Take control of your displays

    CMND: Take control of your displays

    A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It’s all possible with CMND.

  • Optional OPS Insert to create an all-in-one solution

    Optional OPS Insert to create an all-in-one solution

    Turn your display into an all-in-one digital signage solution and create a display network which is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industry standard slot into which you can add an OPS-standardized media player. This cable free solution gives you the ability to install, use or maintain your hardware whenever you need.

  • Keep your content up and running with FailOver

    Keep your content up and running with FailOver

    Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.

  • SmartPower for energy saving

    SmartPower for energy saving

    The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

  • Schedule what you want, when you want with SmartPlayer

    Schedule what you want, when you want with SmartPlayer

    Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere.

  • 4K Ultra HD: resolution like you’ve never seen it before

    See your Signage Solutions like never before thanks to four times the resolution of a conventional Full HD display. 3840 x 2160 pixels provide and image so refined, so lifelike, it’s a window to a new world.

  • Simplify meetings with FailOver for conferencing

    Using FailOver, simplify your presentations and videoconferencing. When a meeting or conference room is not in use, background content can run from whatever input source you choose. When the meeting starts and you need to share a presentation or your screen, simply connect your computer and the display automatically switches inputs and shows what’s on your screen, with no need to manually switch inputs.


Diagonal screen size (inch)
74.5  inch
Diagonal screen size (metric)
189.3  cm
Panel technology
Optimum resolution
3840 x 2160 @ 60Hz
410  cd/m²
Contrast ratio (typical)
Dynamic contrast ratio
Aspect ratio
Response time (typical)
8  ms
Pixel pitch
0.429 x 0.429 mm
Display colors
1073 M
Viewing angle (horizontal)
178  degree
Viewing angle (vertical)
178  degree
Picture enhancement
  • 3/2 – 2/2 motion pull down
  • 3D Combfilter
  • 3D MA deinterlacing
  • Dynamic contrast enhancement
  • Motion compens. deinterlacing
  • Progressive scan
Panel resolution
3840 x 2160
  • Convenience


    Landscape (16/7)

    Landscape (16/7)
    Network controllable
    • RS232
    • HDMI (One Wire)
    • LAN (RJ45)
    Signal Loop Through
    • RS232
    • DisplayPort
    • IR Loopthrough
    Energy saving functions
    Smart Power
    Remote control signal
    Keyboard control
    • Hidden
    • Lockable
    Ease of installation
    Smart Insert
    Other convenience
    Carrying handles
    Screen saving functions
    Pixel Shift, Low Brightness
    Picture in picture
    Picture performance
    Advanced color control
  • Operating conditions

    Temperature range (operation)
    5 ~ 40  °C
    Temperature range (storage)
    -20 ~ 60  °C
    Relative humidity
    20 ~ 80  %
    50,000  hour(s)
    0 ~ 3000 m
  • Miscellaneous

    On-Screen Display Languages
    • English
    • French
    • German
    • Italian
    • Polish
    • Russian
    • Spanish
    • Turkish
    • Simplified Chinese
    • Traditional Chinese
    • Arabic
    • Japanese
    • Portuguese
    Regulatory approvals
    • CE
    • UL/cUL
    • CCC
    • C-Tick
    • RoHS
    • GOST
    • FCC, Class A
    3 year warranty


Video input
  • VGA (Analog D-Sub)
  • DisplayPort (1.2)
  • DVI-D
  • HDMI (x3)
  • Component (RCA)
  • Composite (RCA)
Video output
Audio input
  • 3.5 mm jack
  • Audio Left/Right (RCA)
Audio output
  • 3.5mm jack
  • External speaker connector
External control
  • RS232C (in/out) 2.5 mm jack
  • RJ45
  • IR (in/out) 3.5 mm jack
Other connections
  • AC-out
  • OPS
  • USB

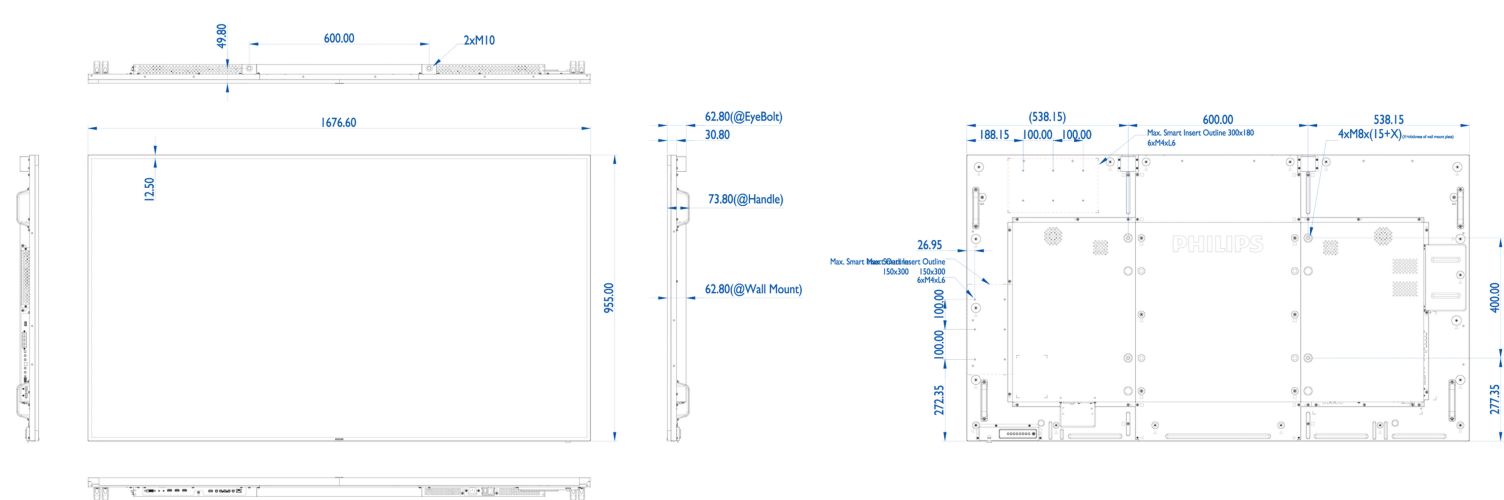

  • Dimensions

    Bezel width
    12.50 mm
    Set Width
    1676.60  mm
    Set Height
    955.00  mm
    Set Depth
    73.80  mm
    Set Width (inch)
    66.01  inch
    Set Height (inch)
    37.60  inch
    Set Depth (inch)
    2.91  inch
    VESA Mount
    600 x 400 mm, M8
    Product weight
    53.3  kg
    Product weight (lb)
    117.51  lb
    Smart insert height
    300  mm
    Smart insert width
    250  mm
  • Power

    Mains power
    100 ~ 240 VAC, 50 ~ 60 Hz
    Consumption (Typical)
    197  W
    Standby power consumption
  • Sound

    Built-in speakers
    2 x 10W RMS
  • Accessories

    Included accessories
    • AC Power Cord
    • Batteries for remote control
    • Quick start guide
    • Remote Control
    • User manual on CD-ROM
    • RS232 cable
    • HDMI cable
    Optional accessories
    • HDBaseT OPS Receiver (CRD25)
    • IR Light Motion Sensor (CRD41)
  • Multimedia Applications

    USB Playback Audio
    • AAC
    • AIF
    • AIFF
    • ASF
    • LPCM
    • M3U
    • M4A
    • MP3
    • MP4
    • WAV
    • WMA
    USB Playback Picture
    • BMP
    • GIF
    • JPEG
    • JPG
    USB Playback Video
    • M2TS
    • M4V
    • MK3D
    • MKV
    • MP4
    • MPEG
    • MPG
    • MTS
    • TS
    • TTS
    • VOB
    • WMV
