Description

Full HD 1080p, 60 fps display quality with support for the next generation of ultra-high resolution (3840 x 2160) displays

  • Displays content directly from the built-in storage, microSD slot or USB flash drive
  • Export  and update signage content via an Ethernet or wireless connection
  • Network-based remote management and maintenance software included
  • Remotely manage and monitor the status of content playing from a single display to Enterprise wide
  • Compatible with Windows® and Mac® operating systems
  • Plug-and-play for easy setup and configuration
  • Kensington® security slot to prevent theft or movement of the device
  • Playlist editing – including, RSS, Google Calendar, Twitter, weather, built-in widget, IP streaming (RTSP/RTP), real-time message updates, USB and IP camera inputs
  • Warranty – Minimum 3 years
  • Playback Scheduler, single or multi-playlists
  • HDMI CEC support
  • CAP (Common Alert Protocol) for emergency broadcasting

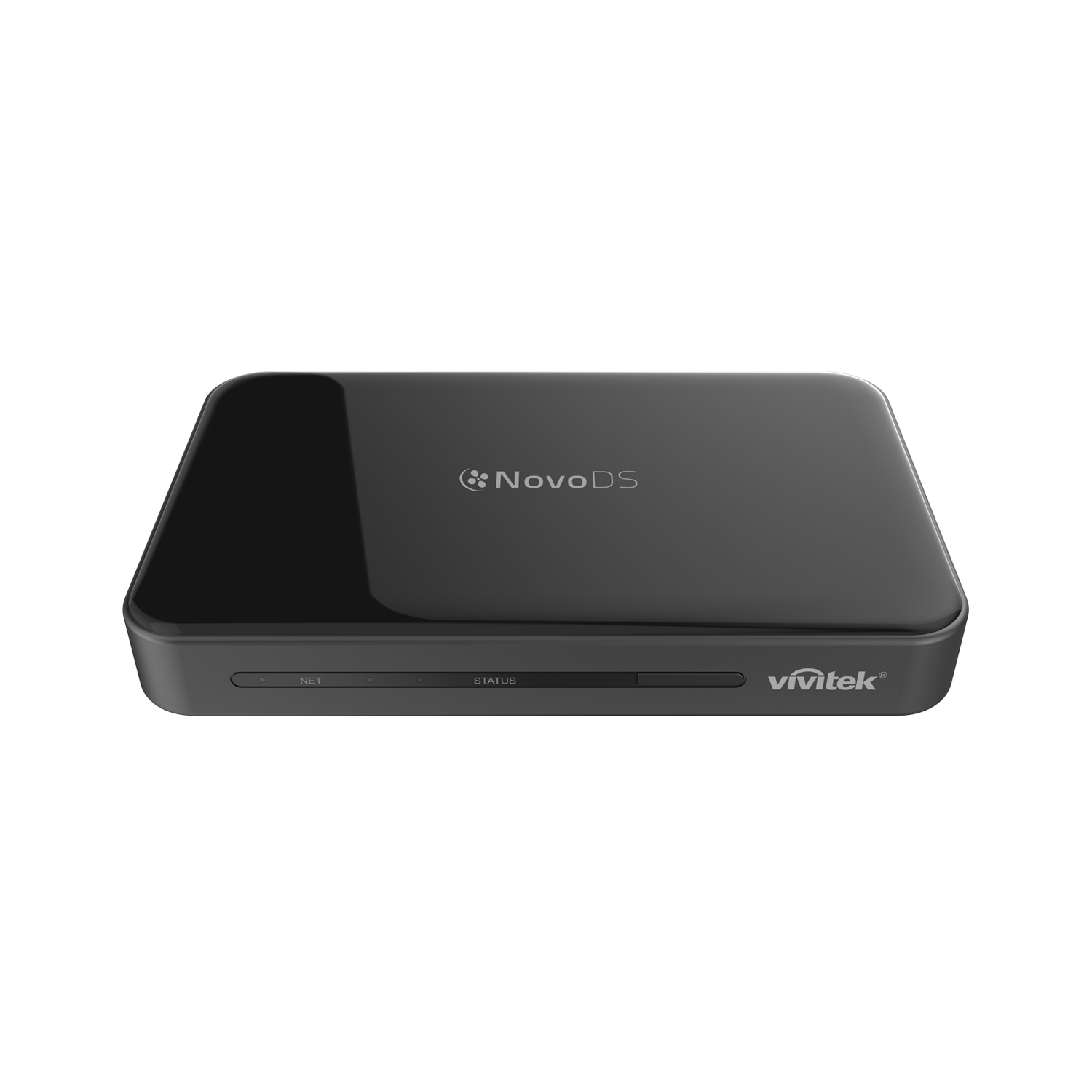

An easy-to-manage digital signage solution for creating dynamic multimedia content for a variety of large-scale corporate and educational applications. It features a diverse mix of signage templates for easy creative control. Designed with a complete user-friendly interface, the NovoDS allows users to generate signage content without the need of any programming skills.

Introduction

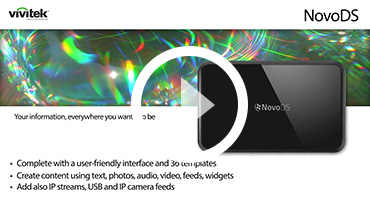

NovoPRO Product Introduction

General Operation

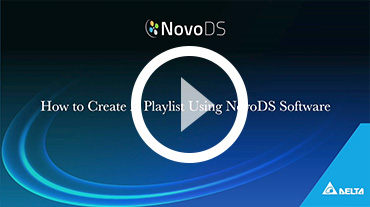

NovoPRO Playlist Editing

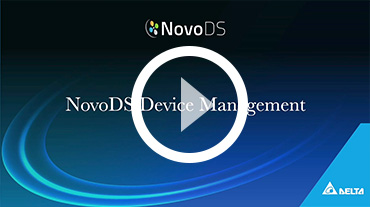

NovoPRO Device Management

View All Videos
Pre-configured Templates
Simple-to-Create Content

Includes 36 pre-configured templates and one customizable template provides a simple platform for creating content for digital signage displays.

Dynamic Media
Dynamic Messaging

Use text, photos, audio, video, RSS, Twitter, built-in widget, IP streaming (RTSP/RTP), real-time message updates, USB and IP camera inputs for informational and engaging content.

Uncompromised Video
Uncompromised, Full HD Video Playback

Supports Full HD 1080p at 60 fps and 4K Ultra HD (3840 x 2160) at 30 fps.

NovoDS Plug-N-Play
Plug-n-Play to Display

Easy setup and configuration, display content directly from the built-in storage, microSD slot or USB flash drive. Export  and update content via an Ethernet or wireless connection.

Remote Management
Security and Remote Management

Kensington® security prevents theft or movement of device. Remotely manage and real-time monitor the status of content playing from a single display to Enterprise wide.

NovoDS Plug-N-Play
NovoDS Simulator

For Android tablet users, you can fully simulate the features of NovoDS. Design and optimize your playlists, pre-view playlists and then deploy. Also, ideal for peer to peer reviews.

Device Firmware Spec

Display Resolution 720p
1080p
4k UHD (3840×2160)
Networking Connection WiFi
Ethernet
Storage Internal: 8GB (~6GB available)
External: micro-SD card (up to 64GB)
Media Supported Video: MPEG2, MPEG4, H.264, VC-1(WMV), WebM
Audio: MP3, WMA, AAC
Image: JPEG, PNG, GIF, BMP
Web:
Text:
Screen Partition Built-in templates or build-your-own templates
Auto-Start Feature Automatically start media playback upon power-up
Operation Modes Standalone: playback from micro-SD card directly
Network-based: content synchronization and playback control from a remote computer
Firmware Upgrade Upgrade over the Internet or Site Manager

PC/Mac Software Spec.

OS Windows 7 and above
Mac (10.6.8 and above)
Template 36 built-in templates
Fully-customized template
Playlist Editing Import pictures, video clips, web links, and text.
Playlist Export/Import Export playlists to SD card for standalone playback
Export playlists to pre-build content packages
Import playlists from pre-built content packages
Remote Device Management Manage multiple devices from one computer

Monitor device status
Basic management task, like start, stop, upgrade firmware, etc.
Push playlists to multiple devices via one-button click

Control via Serial Port Control external equipment via RS232 port
Software Upgrade Upgrade over the Internet or Site Manager

Hardware Specifications

CPU ARM Cortex A9 Quad-Core at 1.6 GHz
Memory DDR 1 GB
Storage Internal: 8 GB; External: MicroSD Card Slot
Wi-Fi 802.11 AC (2.4 GHz & 5 GHz) (b/g/n) 2T2R
Ethernet (RJ45) 10/100 (x1)
USB USB 2.0 Type A (x1)
HDMI Video Output (x1) with Audio
Power Input Micro USB (5.35 V at 2A)
LED Indicators GREEN (Power on); BLUE (Network Activity); RED (Standby)
Button RESET
RS232 via USB-to-RS232 adaptor (Prolific Chipset)
Temperature Operating: 0°- 40° C; 32° – 104° F (Ambient)
Storage: -20° C – 60° C; -4° – 140° F (Ambient)
Dimensions (L x W x H) 120 x 75 x 16 mm; (4.72″ x 2.95″ x 0.63″)
Weight 128 g, (4.5 oz.)
