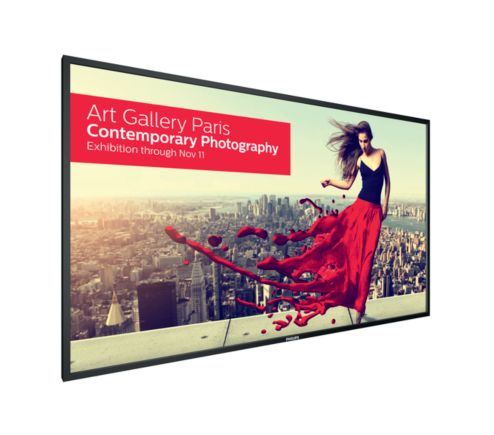

Philips Signage Solutions U-Line Display 84″, Edge LED Backlight, Ultra HD BDL8470EU/00

• Manage and control your network remotely via SmartControl



  SmartControl lets you remotely control and manage your network of displays via RJ45 and RS232C. Easily fine-tune all display settings including resolution, brightness, contrast and cloning of your settings over your complete network.

• Keep your content up and running with FailOver



  Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and you’re ready for instant protection.

• SmartPower for energy saving



  The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

• Designed for 24/7 operation



  Because business never sleeps, our signage displays are designed for 24/7 use. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-the-clock reliability.

• Optional OPS Insert to create an all-in-one solution



  Turn your display into an all-in-one digital signage solution and create a display network that is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industry-standard slot into which you can add an OPS-standardised media player. This cable-free solution gives you the ability to install, use or maintain your hardware whenever you need to.

• Play content from 4 separate inputs with QuadViewer



  Be more flexible with your screen real estate. With the ability to play content from up to four separate inputs, all on one screen, QuadViewer is ideal for control rooms, corporate environments and meeting rooms.

• Connect and control your content via the cloud with HTML5



  Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your entire network. Simply plug in a RJ45 Internet cable for network connection and connect the display with the dedicated URL address, and you are ready to play your cloud-based content.

• Schedule what you want, when you want with SmartPlayer



  Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.

• 4K Ultra HD: resolution like you’ve never seen before

  See your Signage Solutions like never before thanks to four times the resolution of a conventional Full HD display. 3840 x 2160 pixels provide and image so refined, so lifelike, it’s a window to a new world.

• Portrait mode operability

  This display can also be safely and reliably mounted in portrait position.

• Picture/Display

  Diagonal screen size (inch)

  84  inch

  Diagonal screen size (metric)

  213.5  cm

  Panel technology

  IPS

  Optimum resolution

  3840 x 2160 @ 60 Hz

  Brightness

  500  cd/m²

  Contrast ratio (typical)

  1400:1

  Dynamic contrast ratio

  500,000:1

  Aspect ratio

  16:9

  Response time (typical)

  12  ms

  Pixel pitch

  0.4845 x 0.4845 mm

  Display colours

  1073 M

  Viewing angle (horizontal)

  178  degree

  Viewing angle (vertical)

  178  degree

  Picture enhancement

  • 3/2 – 2/2 motion pull down
  • 3D Combfilter
  • 3D MA deinterlacing
  • Dynamic contrast enhancement
  • Motion compens. deinterlacing
  • Progressive scan

• Convenience

  Placement

  • Landscape
  • Portrait

  Network controllable

  • RS232
  • HDMI (One Wire)
  • LAN (RJ45)

  Signal Loop Through

  • RS232
  • DisplayPort

  Energy-saving functions

  Smart Power

  Remote control signal

  Lockable

  Keyboard control

  • Hidden
  • Lockable

  Ease of installation

  Smart Insert

  Other convenience

  Carrying handles

  Screen-saving functions

  Pixel Shift, Low Brightness

• Accessories

  Included accessories

  • AC Power Cord
  • Batteries for remote control
  • Quick start guide
  • Remote Control
  • User manual on CD-ROM
  • RS232 cable
  • HDMI cable

  Optional accessories

  • ColourCalibrationKit (CCK4602)
  • HDBaseT OPS Receiver (CRD25)



Video input

• VGA (Analogue D-Sub)
• DisplayPort (1.2)
• DVI-D
• HDMI (x 3)
• Composite (BNC)
• Component (BNC)

Video output

Audio input

Audio output

• 3.5 mm jack
• External speaker connector

External control

• RS232C (in/out) 2.5 mm jack
• RJ45

Other connections

• USB
• OPS

• Dimensions

  Product weight (lb)

  154  lb

  Set Width

  1910.00  mm

  Set Height

  1102.00  mm

  Set Depth

  77.80  mm

  Bezel width

  22.60 (R/L), 25.60 (T/B) mm

  Product weight

  70  kg

  VESA Mount

  600 x 500 mm, M8

• Power

  Mains power

  100 ~ 240 VAC, 50 ~ 60 Hz

  Consumption (Typical)

  400  W

  Standby power consumption

  <0.5 W

• Sound

  Built-in speakers

  2 x 10 W RMS

• Operating conditions

  Temperature range (operation)

  5 ~ 40  °C

  Temperature range (storage)

  -20 ~ 60  °C

  Relative humidity

  20 ~ 80  %

  MTBF

  50,000  hour(s)

• Miscellaneous

  On-Screen Display Languages

  • English
  • French
  • German
  • Italian
  • Polish
  • Russian
  • Spanish
  • Turkish
  • Simplified Chinese
  • Traditional Chinese
  • Arabic
  • Japanese

  Regulatory approvals

  • CE
  • UL/cUL
  • CCC
  • C-Tick
  • RoHS
  • GOST
  • FCC, Class A

  Warranty

  3-year warranty
